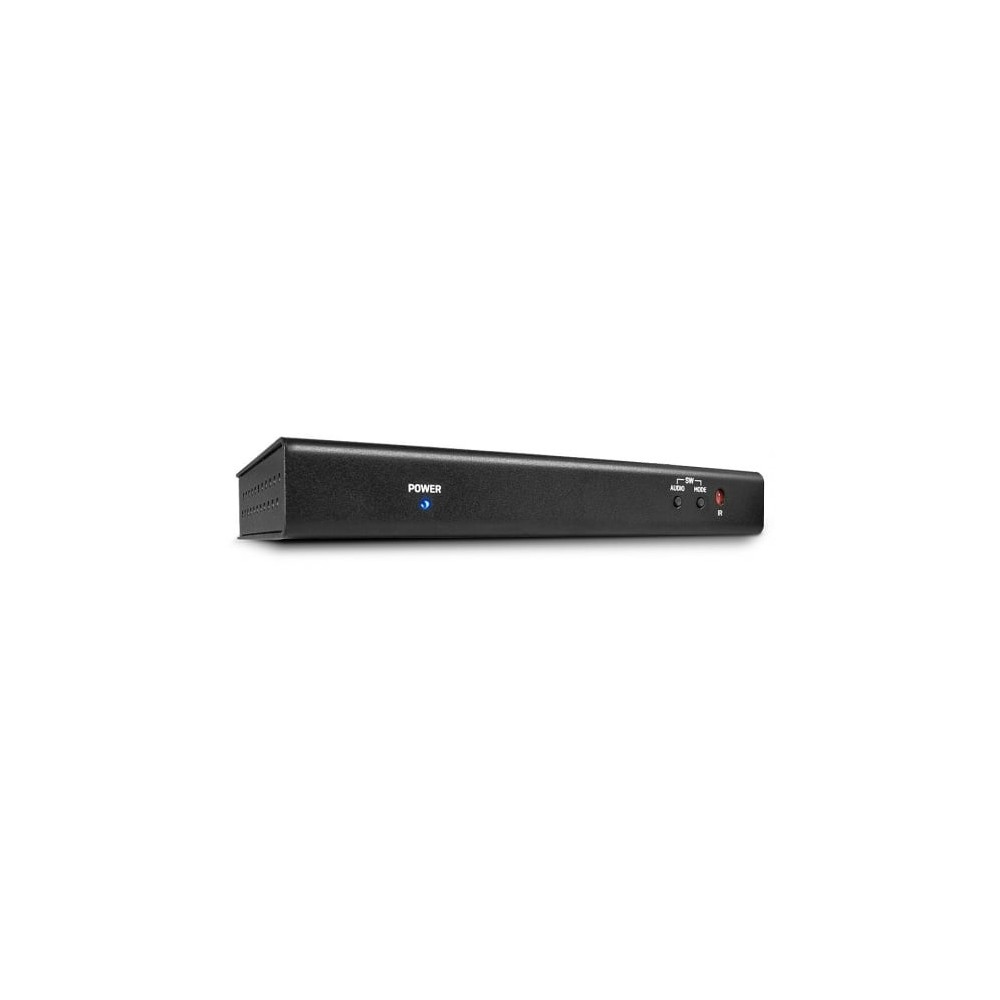

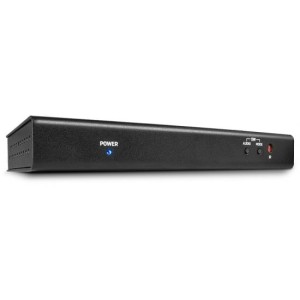

Lindy HDMI 4x1 Multi-View Switch 1080p

The Lindy HDMI 4 Port Multi-View Switch is a professional-grade switcher designed for monitoring four Full HD sources on a single display. Engineered for control rooms, conferencing and AV presentation systems, it offers flexible viewing modes including Quadview, Picture-in-Picture, Dual Video and Full Screen so operators can tailor the on-screen layout to the task.

Technically, the unit supports Full HD 1920x1080@60Hz on both inputs and output and provides seamless, frame-loss-free switching between sources and viewing modes. The switch is powered externally and requires a 12 V DC 2A supply (multi-country adapter supplied). The compact metal housing and fan-free design suit continuous operation in professional environments. For connectivity the switch offers 4x HDMI inputs and a single HDMI output, with HDCP present on the output for protected content handling.

Compatibility is broad: the switch integrates with PCs, media players, games consoles and Smart TVs for use in surveillance, presentation, meeting room and digital signage applications. Control can be handled from the front panel buttons or the supplied IR remote, and audio and video channels can be switched independently to maintain a continuous audio source while monitoring different video feeds.

• View and monitor up to four Full HD sources simultaneously
• Flexible Quadview, PiP and dual video layouts for situational monitoring
• Independent audio switching for uninterrupted audio routing
• Compact metal housing with multi-region power adapter for easy deployment

Additional Information

• Dimensions: 190 x 90 x 23 mm
• Packaging: Carton box, 200 x 170 x 60 mm
• Compliance: CE, FCC, RoHS & REACH
• Warranty: 2 Years
