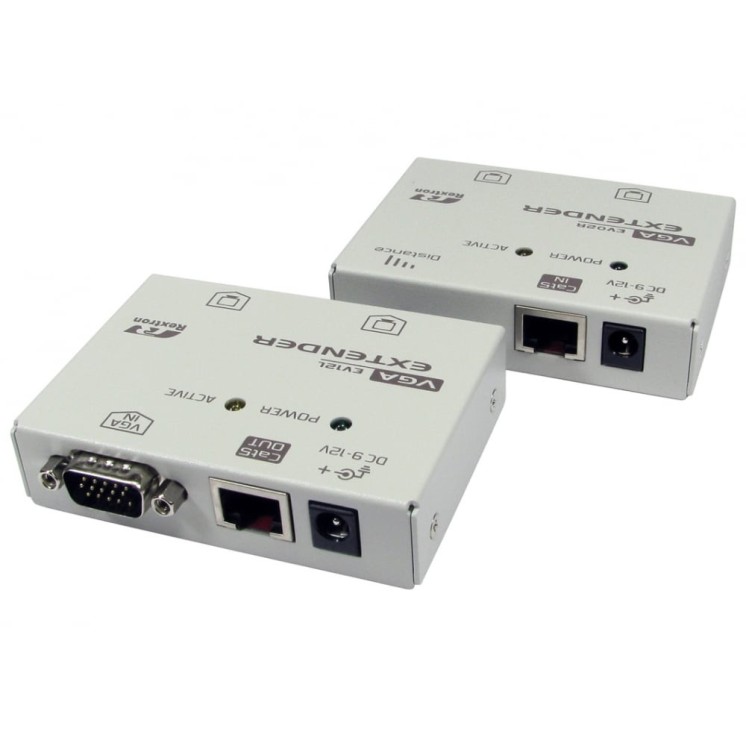

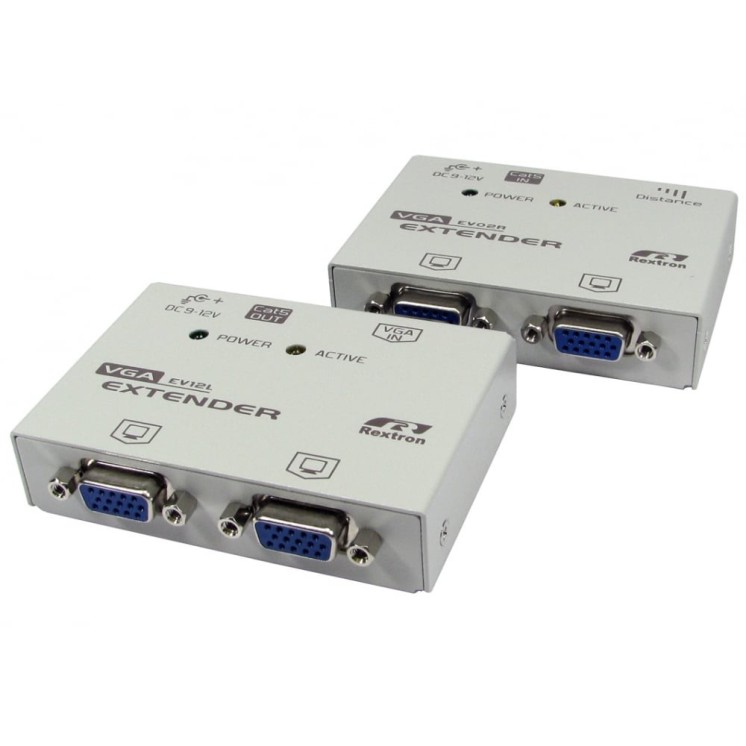

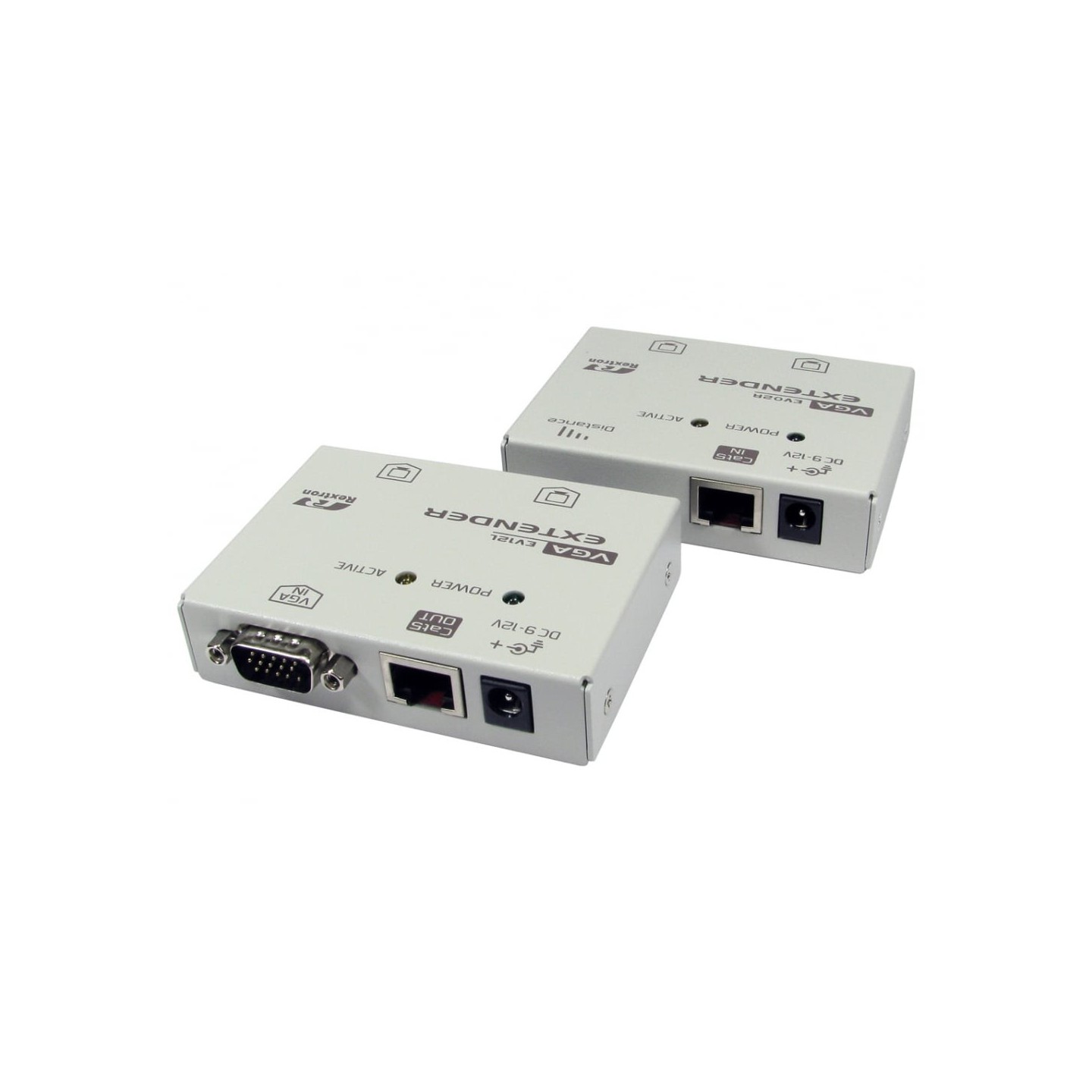

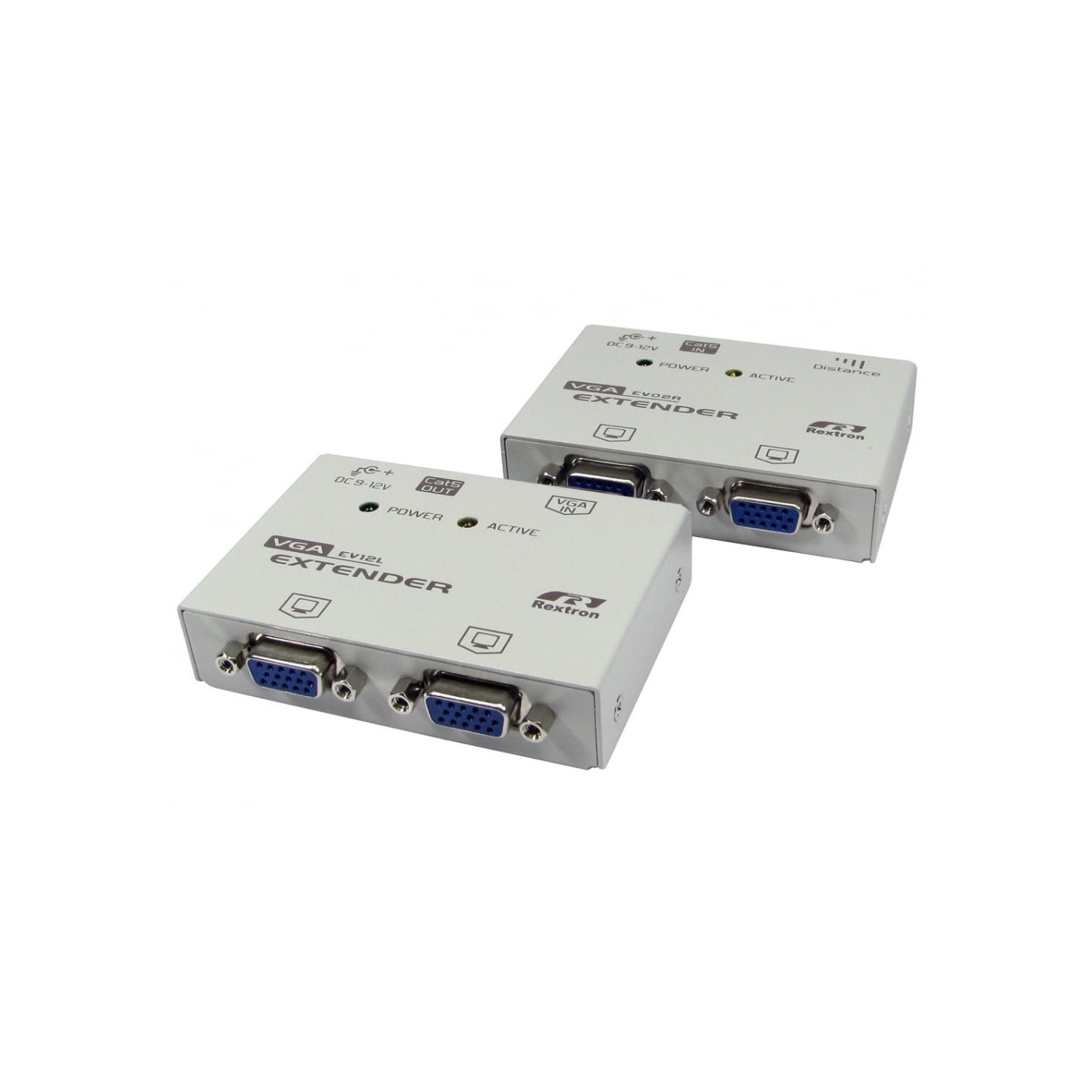

SVGA Extender Over Cat5e

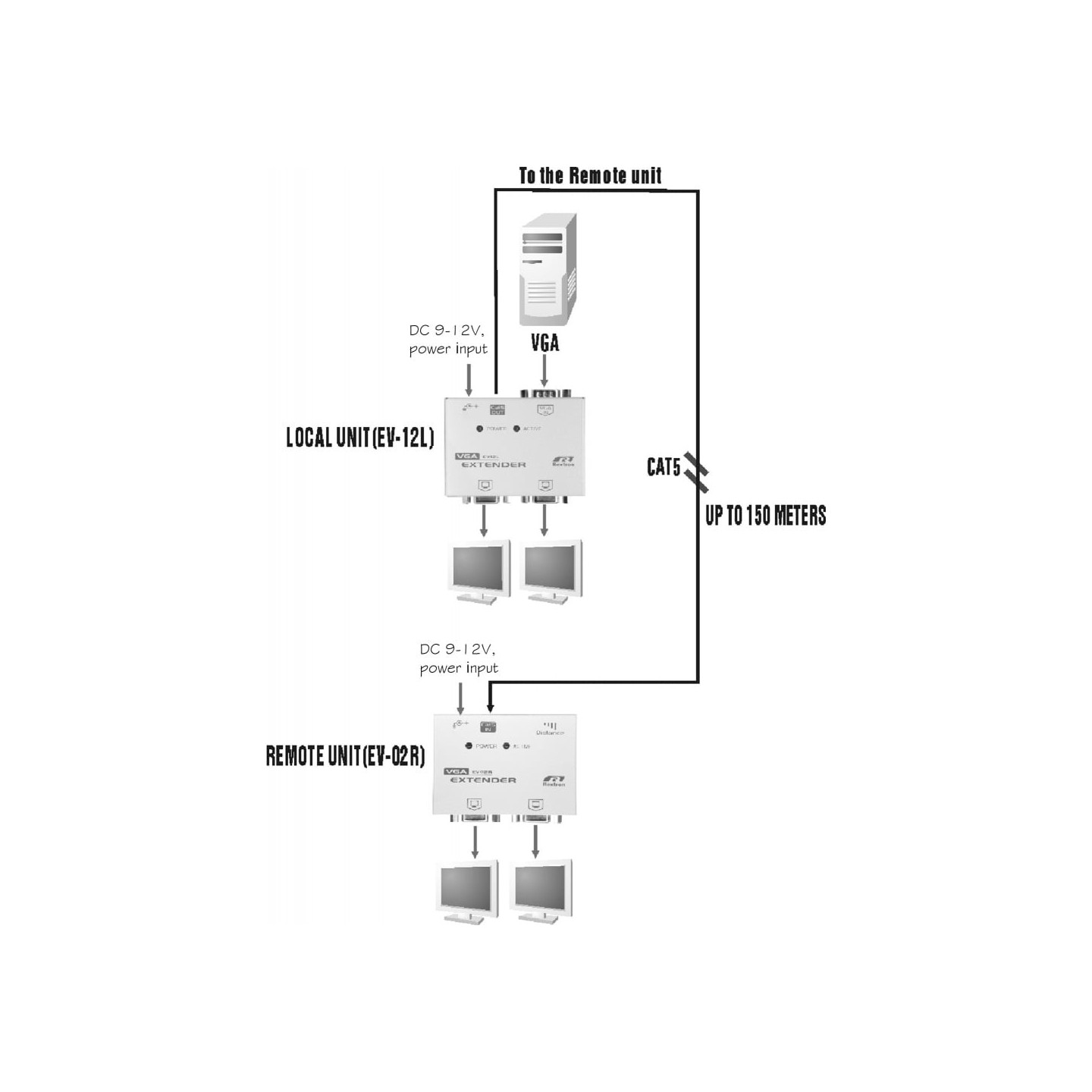

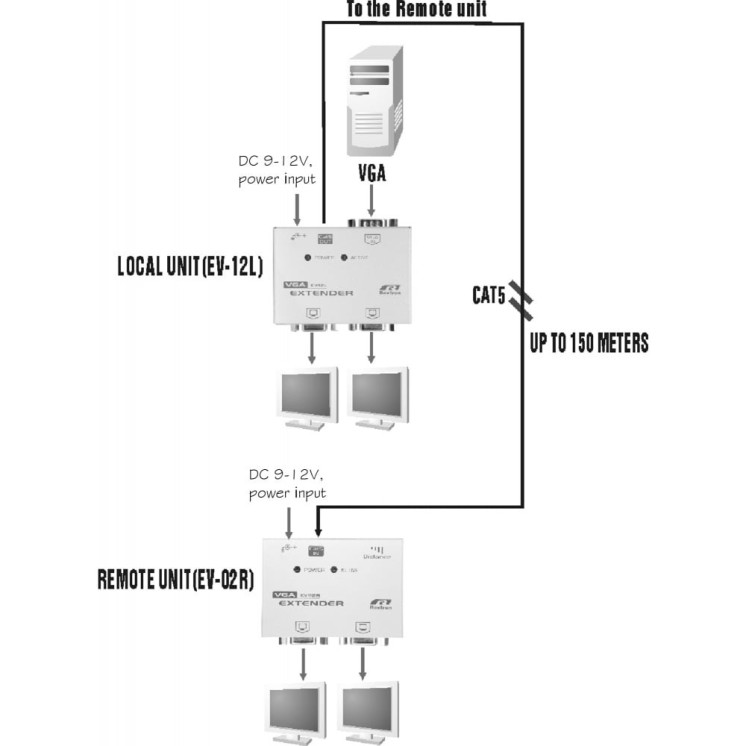

Our range of SVGA CAT5E extenders can be used up to a maximum distance of 150 Mtrs (492ft) away, and support resolution up to 1024 x 768. They have a built in noise suppression circuit, which eliminates signal loss for superb SVGA quality. Because they are can be used with unshielded twisted pair (UTP) CAT5E cable, they provide a cost effective way to extend your Video and Audio signals (depending on model) by using CAT5E.Simple to use, connect the local unit to your computer, connect a cat5 cable to local unit and remote unit then connect your remote monitor to remote unit. Ensure both power supplies are used and both of the units Power LED and Active LED's are lit. If picture quality bad, use the distance selector to adjust.Resolutions are dependent on distance with a max resolution of 1024 x 768 @ 150ms.
